DELOCK PCI Express Card σε 1x Parallel IEEE1284 90412
This PCI Express card by Delock expands a PC by one external parallel port. Different devices such as scanner, printer etc. can be connected to this card.
Τεχνικά Χαρακτηριστικά
external connector: 1 x Parallel DB25 female
internal connector: 1 x PCI Express x1, V1.1
Chipset: WCH382L
Data transfer rate up to 1.5 Mbps
FIFO: 256 byte
SPP, EPP, ECP compatible to IEEE 1284
Operating temperature: -40 °C ~ 85 °C
Relative humidity: 0 – 95 % (non condensing)
Dimensions (LxWxH): ca. 79 x 59 x 13 mm
Supported operating system
Windows 7 32-bit/64-bit
Windows 8.1 32-bit/64-bit
Windows 10 32-bit/64-bit
Περιεχόμενα συσκευασίας
PCI Express card

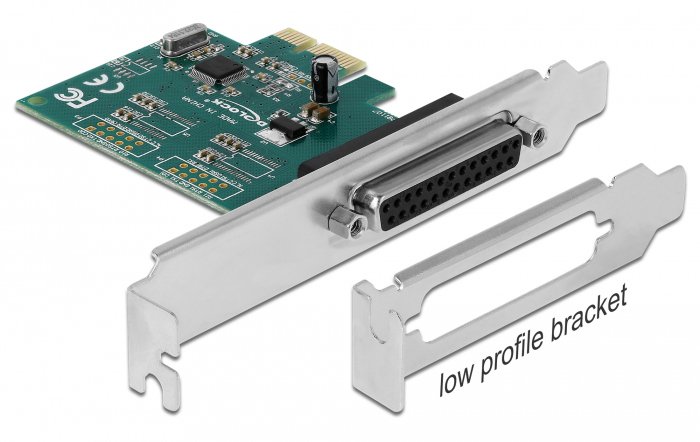

Low profile bracket
Driver CD
User manual
